Brisant Ultion Cylinder

In Stock
Not too sure?

Call us freephone on 0800 197 6885 where our friendly, expert team will be happy to help

Fedex logo Dpd logo

We can have this item with you the very next business day by Fedex or DPD!

TS007 3 Star & Sold Secure SS312 Diamond

** Please note we are unable to retail this product online in order to maintain its integrity. We are able to sell this product at very reasonable prices to both retail and trade customers. Please call our sales team on 01924 360444 for futher information or to place an order **

• TS007 3 Star
The Brisant ULTION Cylinders have been tested to and have surpassed the needs of the TS007 3 star tests. So can be fitted in confidence without having to be bolstered with an expensive high security handle. When Ultion is locked it is the actual centre cam that gets independently secured, not secured to the internal plug – this means that even when the key is left on the inside of the lock Ultion is still secure.

• Sold Secure SS312 Diamond
The Ultimate standard that other 3-star anti-snap locks want but don’t get. This is the rigours of the TS007 3-star but with added aggressive attack, time and tested by an experienced MLA locksmith. Even when the tester was allowed more access around the lock, more tools, freedom to break the material surrounding the lock and the ability to pause the clock to consider a different tack – Ultion was not defeated.

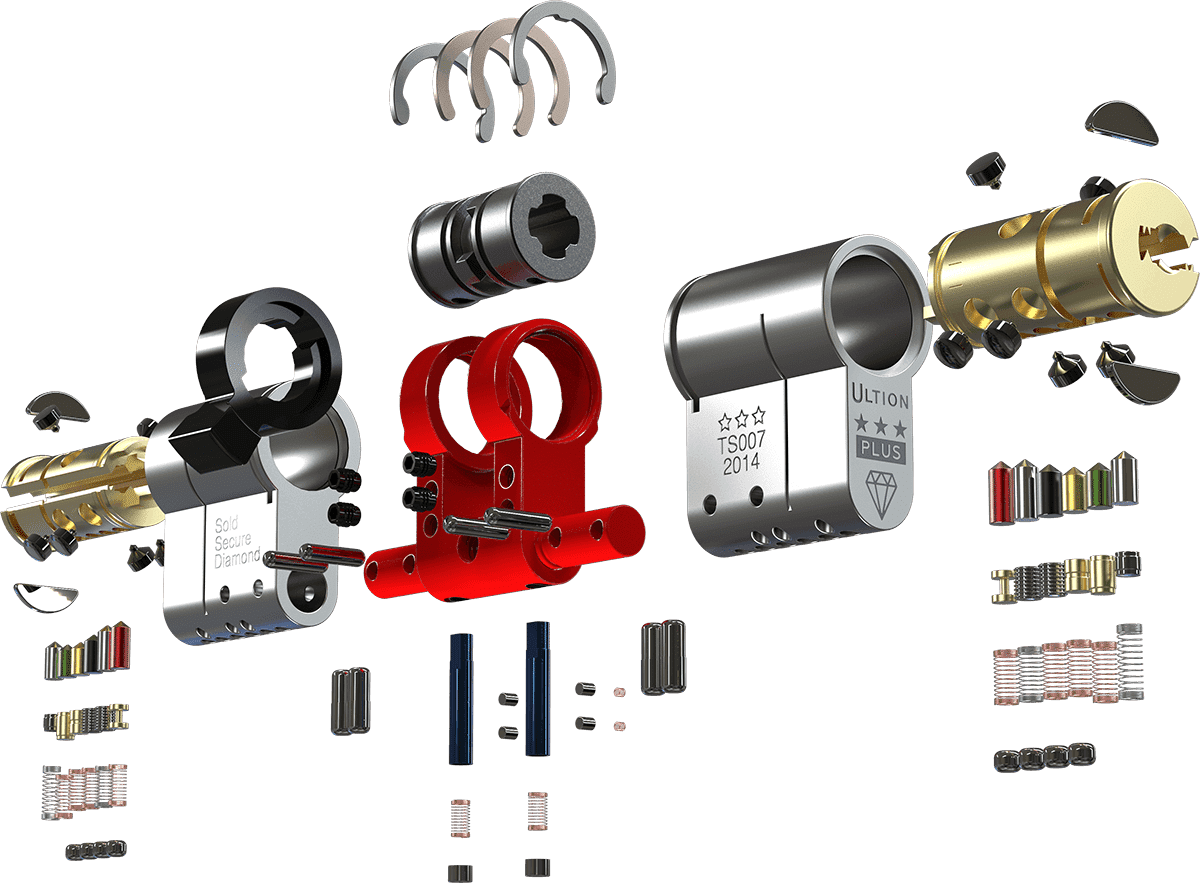

• 11 Pins
Underneath the key sit 6 pins. Each of these pins have specific jobs, there are 2 steel anti drill pins, 3 brass mushroom anti-pick pins, and one anti-bump. But then, above the key Ultion is housing a further 5 pins – creating an astonishing 294,000 key combinations.

• Brisant ULTION Cylinders Keep debris out.
Debris dropping into the lock can jam them up. Brisant ULTION Cylinders keep themselves clean in three ways.
First the keyway is not a gaping hole ready to welcome anything from pocket fluff to small insects. In fact the shape is designed to wipe the key clean at the point of entry.
Second there are no magnets on the key. This means that tiny, but damaging, metal scrapings from coins and other keys aren’t carried into the lock when stuck magnetically on the key.
Thirdly because ULTION has 11 pins creating 294,000 key combinations there is no need to create extra deep key dimples for debris to hide and sneak into the lock.

• 12 Hardened steel anti-drill pins
Anti drill pins have featured in existing high end locks for a while. Ultion however has 6, in both sides (because it is non-handed!). So the burglar meets the first two in the sacrificial section of the cylinder. But if he decides to snap the lock first then go for the drill he’ll find his drill bit fighting against 4 more anti-drill pins.

We know how important it is that you always have a lock to suit every eventuality, but equally important is the overwhelming amount of cash tied up in van stock. That’s why Ultion has a clever dual-colour design – cutting the amount of stock you need in half. And then, by putting the unbeaten security features in both sides of the lock you halve your stock again not having to buy and carry ‘handed’ anti-snap locks.
It takes 100 normal anti-snap locks to do what you can do with 25 Ultion.

Halves your van stock… then halves it again…

• The most snap resistant cylinder lock
Normal, handed anti-snap locks feature a single sacrificial section and focus on strength to make snapping harder. Except the strength is never enough to withstand the force leveraged from a burglar’s mole grips. On each end of an Ultion cylinder there are two sacrificial elements, each designed to snap with relative ease, but more importantly in exactly the right place. When snapped the central cam is directly and independently locked – not to an attackable internal plug.
