How do I...

Identify a uPVC Door Lock Identify uPVC Door Handles Measure a Lever pad Door Handle Measure a Euro Cylinder
  1. Is there a manufacturers name stamped on the lock strip? Example Answer: Avocet
  2. What is measurement A ? (See picture to right) Example Answer: 35mm
  3. What is measurement B ? (See picture to right) Example Answer: 92mm
  4. What locking points are there on the strip? Example Answer: 2 Hooks and 2 Rollers

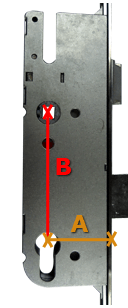

How to Identify a uPVC Door Lock diagram

The 3 common measurements required to help identify your upvc door handle would be to measure A,B & C from the image below.

  1. The A Measurement Measure from the centre of the keyhole to the centre of the handle
  2. The B Measurement Measure from the centre of the top screw point to the centre of the bottom screw point
  3. The C Measurement Measure the overall length of the handle from top to bottom.
  4. The D Measurement Measure the overall width of the handle

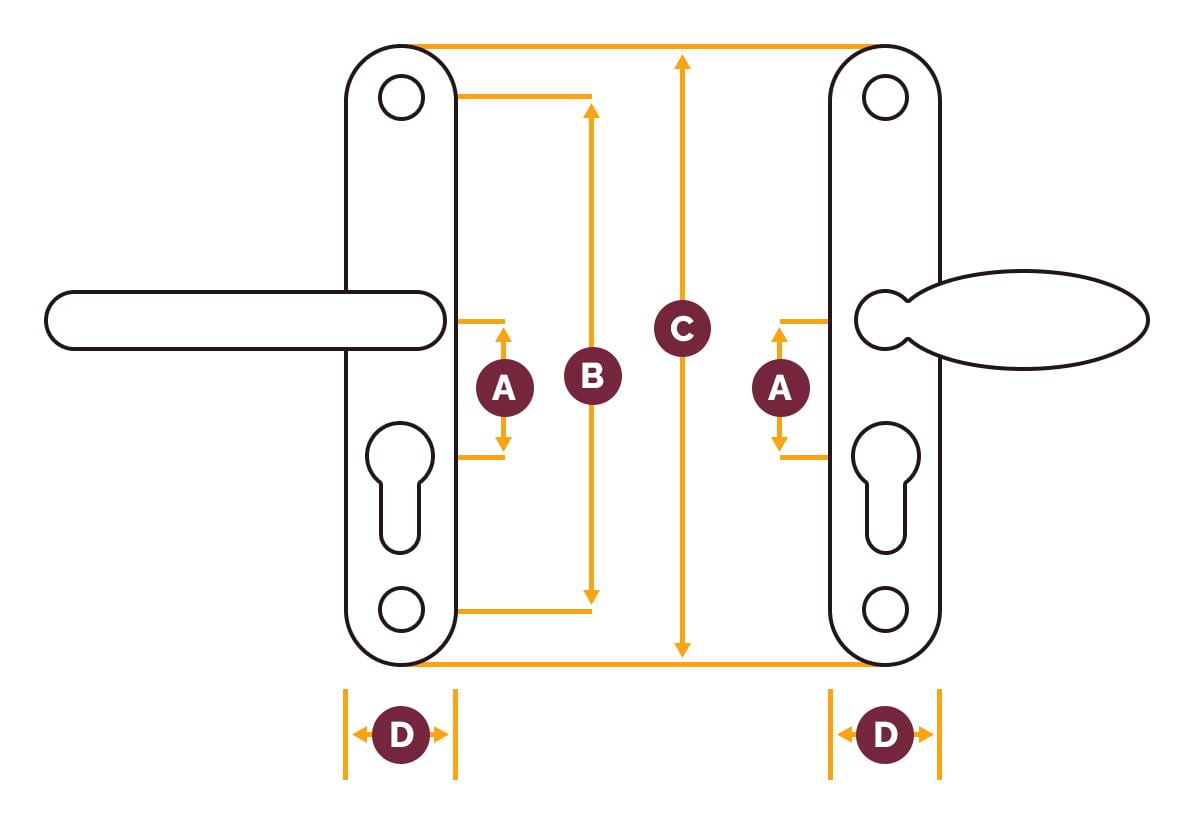

How to Identify uPVC Door Handles diagram

The 3 common measurements required to help identify your upvc door handle would be to measure A,B & C from the image below.

  1. The A Measurement Measure from the centre of the keyhole to the centre of the handle. Please measure this on both the internal & external side as these measurements may vary if the handles are offset.
  2. The B Measurement Measure from the centre of the top screw point to the centre of the bottom screw point
  3. The C Measurement Measure the overall length of the handle from top to bottom
  4. The D Measurement Measure the overall width of the handle
How to Measure a Lever pad Door Handle diagram

To determine the size, measure 'A' then 'B' and combine the two to get your overall length.

  1. The A Measurement Example: 40mm
  2. The B Measurement Example: 45mm
  3. Cylinder Example: 40/45
  4. Overall Length 85mm
How to Measure a Euro Cylinder diagram
Not too sure? Call us freephone on 0800 197 6885 or fill out our online ID sheet and we'll find your lock or fill out our online ID sheet and we'll find your handle
