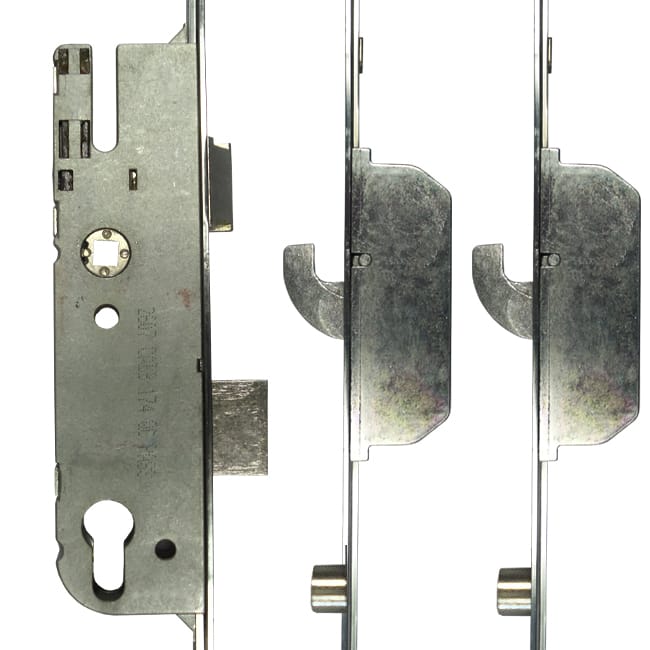

A multi-point lock made by the respected GU provides more than just effective hook bolts, it also features two roller cams on its locking strip. The roller cams enhance the level of protection provided by the hook bolts. With a back set measuring 35mm built onto a rail measuring 16mm, this lock was designed with uPVC and plastic doors.

Main Features

  • 2 hook bolts and 2 roller cams for enhanced security
  • Latch and deadbolt locking mechanisms
  • The door is secured along its entire length, not just at the centre, bottom or top
  • Universal fit for left-handed and right-handed applications
  • Latch reversal: Push a flat bladed screwdriver into the small rectangular slot above the spindle and pull out latch at same time. reverse and reinsert.

Our delivery charges are based on the weight and size of them item. We also now offer free delivery on orders over £100 (net).

Item Weight / Size Delivery Charge
Up to 5kg | £5.25 – DPD Expresspak Next Working Day Service
5kg to 10kg | £5.75 – DPD Expresspak Next Working Day Service
10kg to 20kg | £7.50 – DPD Parcel Next Working Day Service
Oversized Parcels / Tubes (i.e Door Mechanisms) | £10.75 – Next Working Day Oversized Service
£100 + Free Next Day Delivery

The above prices apply to mainland UK deliveries only and are exclusive of VAT.

Please note that we have a cut off time of 3pm for all next day deliveries

Delivery Surcharges – Highlands and Scottish Isles

Please note that for the below postcodes we can only offer a 2 – 3 Day service priced at £15.50 for items up to 20kg, or £32.50 for oversized items or items over 20kg

  • AB31 – AB56
  • FK18, FK19
  • HS1 – HS9
  • IV1 – IV56, IV63
  • KA27, KA28
  • KW1 – KW17
  • PA20 – PA78, PA87, PA88
  • PH17 – PH50
  • PO30 – PO41
  • ZE1 – ZE3

Overseas Delivery Charges

Please note that for the below areas we can only offer a 2 – 3 Working day service for items in a small box under 1m in length or in a bag up to 10kg.

  • Northern Ireland & ROI £15.50+vat
  • Isle of Wight £15.50+vat
  • Channel Islands £19.50+vat
  • Isle of Man £18.00+vat

Please note that for the below areas we can only offer a 2 – 3 Working day service for oversized items over 20kg.

  • Inverness | £25.50+vat
  • Isle Of Man | £37.50+vat
  • Belfast | £37.50+vat
  • Channel Island | £65+vat

Liability

MPL cannot be held liable for late deliveries from our courier and as such any courier charges will not be refunded. We operate services based on a next day delivery basis where possible. Please note that overseas deliveries may take longer. We will endeavour to deliver your order as quickly as possible.

If you have any questions regarding our delivery charges please do not hesitate to call us on 01924 360444.

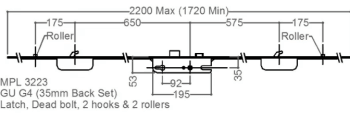

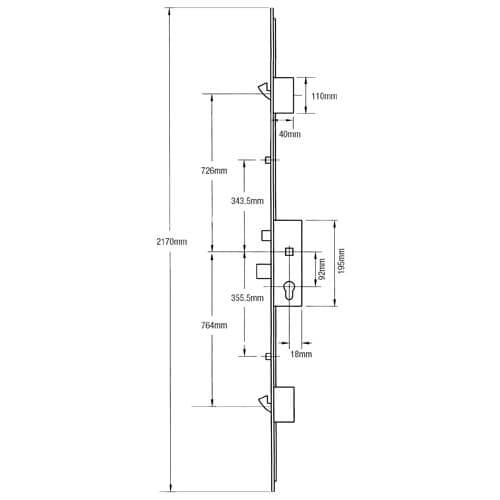

WeightN/A
Backset

35mm

Distance between locking points:

1225mm (Short), 1490mm

Central Locks

Latch & Deadbolt

Centres

92mm

Locking Mechanism

Deadbolt

Faceplate

16mm

Faceplate - Don t Use

16mm

Locking Points

2 Hooks, 2 Rollers

Spindle

Single

How do I Identify a uPVC Door Lock

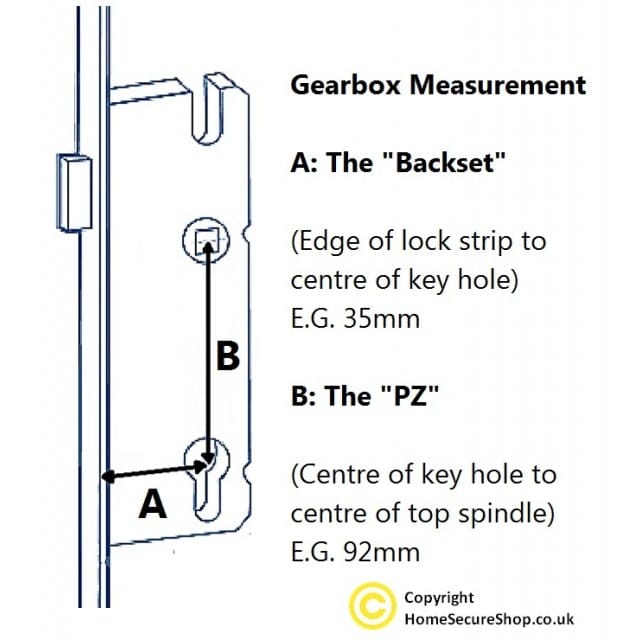

If you've never replaced a lock before it can be tough to even know where to start! But to make things easier, we've put together a guide on how to identify your uPVC Door Lock. Follow the steps below to correctly identify the lock that you need, so you can order the right item first-time.

  1. Is there a manufacturers name stamped on the lock strip? Example Answer: Avocet
  2. What is measurement A ? (Known as the backset) Measure from the front of the metal strip backwards to the centre of the keyhole
  3. What is measurement B ? (Known as the PZ/Centres) Measure from the centre of the keyhole to the centre of the square spindle hole
  4. What locking points are there on the strip? Example Answer: 2 Hooks and 2 Rollers
How to Identify a uPVC Door Lock diagram

The 3 common measurements required to help identify your upvc door handle would be to measure A,B & C from the image below.

  1. The A Measurement Measure from the centre of the keyhole to the centre of the handle
  2. The B Measurement Measure from the centre of the top screw point to the centre of the bottom screw point
  3. The C Measurement Measure the overall length of the handle from top to bottom.
  4. The D Measurement Measure the overall width of the handle
How to Identify uPVC Door Handles diagram

The 3 common measurements required to help identify your upvc door handle would be to measure A,B & C from the image below.

  1. The A Measurement Measure from the centre of the keyhole to the centre of the handle. Please measure this on both the internal & external side as these measurements may vary if the handles are offset.
  2. The B Measurement Measure from the centre of the top screw point to the centre of the bottom screw point
  3. The C Measurement Measure the overall length of the handle from top to bottom
  4. The D Measurement Measure the overall width of the handle
How to Measure a Lever pad Door Handle diagram

To determine the size, measure 'A' then 'B' and combine the two to get your overall length.

  1. The A Measurement Example: 40mm
  2. The B Measurement Example: 45mm
  3. Cylinder Example: 40/45
  4. Overall Length 85mm
How to Measure a Euro Cylinder diagram

GU / G-U 2 Hook 2 Roller

£52.00
In Stock
