Description Delivery More Info Measuring

SKU

: ovn35

SPECIAL OFFER NOW ON!!!

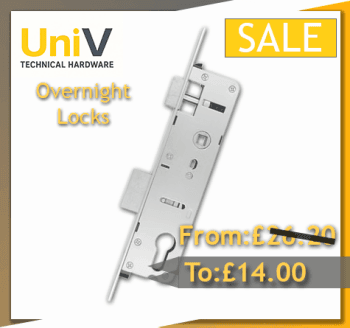

The Uni-V Overnight Lock is a competitively priced solution to securing properties overnight whilst a replacement full-length multipoint is acquired.

Available in 30mm, 35mm & 45mm Backsets with 92mm PZ (centres), Lift Lever operation

Latch Reversal:

30 & 35mm Backsets:

Unscrew the Screw located on the back of the Lock Case parallel to the Latch
Then push the latch into the lock case so it sits behind the faceplate and rotate.
Once you have reversed the latch, allow it to pop out into its original position in front of the faceplate then insert and tighten the screw.

Our delivery charges are based on the weight and size of them item. We also now offer free delivery on orders over £100 (net).

Item Weight / Size Delivery Charge
Up to 5kg | £5.25 – DPD Expresspak Next Working Day Service
5kg to 10kg | £5.75 – DPD Expresspak Next Working Day Service
10kg to 20kg | £7.50 – DPD Parcel Next Working Day Service
Oversized Parcels / Tubes (i.e Door Mechanisms) | £10.75 – Next Working Day Oversized Service
£100 + Free Next Day Delivery

The above prices apply to mainland UK deliveries only and are exclusive of VAT.

Please note that we have a cut off time of 3pm for all next day deliveries

Delivery Surcharges – Highlands and Scottish Isles

Please note that for the below postcodes we can only offer a 2 – 3 Day service priced at £15.50 for items up to 20kg, or £32.50 for oversized items or items over 20kg

AB31 – AB56
FK18, FK19
HS1 – HS9
IV1 – IV56, IV63
KA27, KA28
KW1 – KW17
PA20 – PA78, PA87, PA88
PH17 – PH50
PO30 – PO41
ZE1 – ZE3

Overseas Delivery Charges

Please note that for the below areas we can only offer a 2 – 3 Working day service for items in a small box under 1m in length or in a bag up to 10kg.

Northern Ireland & ROI £15.50+vat
Isle of Wight £15.50+vat
Channel Islands £19.50+vat
Isle of Man £18.00+vat

Please note that for the below areas we can only offer a 2 – 3 Working day service for oversized items over 20kg.

Inverness | £25.50+vat
Isle Of Man | £37.50+vat
Belfast | £37.50+vat
Channel Island | £65+vat

Liability

MPL cannot be held liable for late deliveries from our courier and as such any courier charges will not be refunded. We operate services based on a next day delivery basis where possible. Please note that overseas deliveries may take longer. We will endeavour to deliver your order as quickly as possible.

If you have any questions regarding our delivery charges please do not hesitate to call us on 01924 360444.

Weight	0.05 kg
Backset	35mm

How do I Identify a uPVC Door Lock

If you've never replaced a lock before it can be tough to even know where to start! But to make things easier, we've put together a guide on how to identify your uPVC Door Lock. Follow the steps below to correctly identify the lock that you need, so you can order the right item first-time.

Is there a manufacturers name stamped on the lock strip? Example Answer: Avocet
What is measurement A ? (Known as the backset) Measure from the front of the metal strip backwards to the centre of the keyhole
What is measurement B ? (Known as the PZ/Centres) Measure from the centre of the keyhole to the centre of the square spindle hole
What locking points are there on the strip? Example Answer: 2 Hooks and 2 Rollers

The 3 common measurements required to help identify your upvc door handle would be to measure A,B & C from the image below.

The A Measurement Measure from the centre of the keyhole to the centre of the handle
The B Measurement Measure from the centre of the top screw point to the centre of the bottom screw point
The C Measurement Measure the overall length of the handle from top to bottom.
The D Measurement Measure the overall width of the handle

The 3 common measurements required to help identify your upvc door handle would be to measure A,B & C from the image below.

The A Measurement Measure from the centre of the keyhole to the centre of the handle. Please measure this on both the internal & external side as these measurements may vary if the handles are offset.
The B Measurement Measure from the centre of the top screw point to the centre of the bottom screw point
The C Measurement Measure the overall length of the handle from top to bottom
The D Measurement Measure the overall width of the handle

To determine the size, measure 'A' then 'B' and combine the two to get your overall length.

The A Measurement Example: 40mm
The B Measurement Example: 45mm
Cylinder Example: 40/45
Overall Length 85mm

Overnight Lock Special 35mm Backset

Name: MPL
Address: MultiPointLocks (MPL) 31-33 Westgate End, Wakefield West Yorkshire, WF2 9RG
Telephone: 0800 197 6885

£14.00

In Stock

10 in stock

Next Business Day Delivery
We can have this item with you by Mon 25th August when ordered before 3pm
